Multichannel RS-232 transceiver supporting 3-V to 5.5-V operation, ideal for interface applications. Features 5 drivers and 3 receivers, enabling full-duplex communication at data rates up to 1000Kbps. Operates across a wide temperature range of -40°C to 85°C, with a maximum supply voltage of 5.5V and output voltage of 5.4V. Packaged in a 28-pin SSOP for surface mounting, this lead-free and RoHS-compliant component offers a propagation delay of 150ns.
PackageSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TRS3237EIDBR technical specifications.
General
Package/Case
SSOP
Data Rate
1000Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
5
Number of Receivers
3
Number of Transceivers
1
Number of Transmitters
5
Operating Supply Voltage
5V
Output Current
60mA
Output Voltage
5.4V
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
150ns
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
2mA
Weight
0.007351oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TRS3237EIDBR Datasheet
Download the complete datasheet for Texas Instruments TRS3237EIDBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

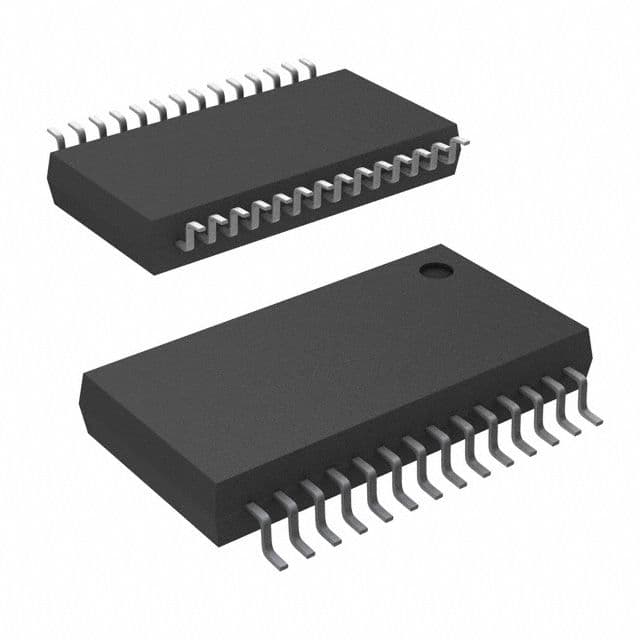

Product Images
