Texas Instruments
TS3A225EYFFR
100-mΩ audio jack switch with autonomous microphone & ground detection 16-DSBGA -40 to 85
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS3A225EYFFR technical specifications.
General
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
10uA
Max Supply Voltage
4.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
2
Number of Inputs
2
Number of Outputs
4
On-State Resistance
100mR
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS3A225EYFFR Datasheet
Download the complete datasheet for Texas Instruments TS3A225EYFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

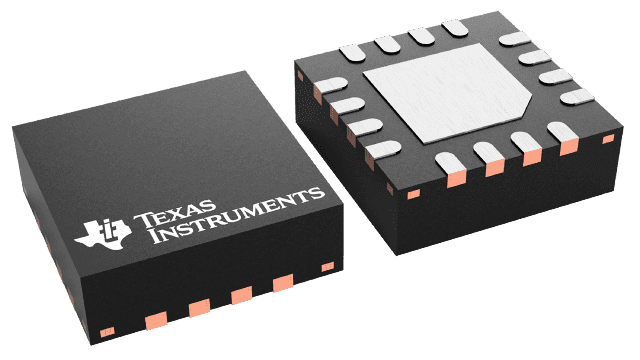

Product Images
