Texas Instruments
TS3A24157RSERG4
0.65-Ω, 3.3-V, 2:1 (SPDT), 2-channel analog switch 10-UQFN -40 to 85
PackageQFN
Current15nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS3A24157RSERG4 technical specifications.
General
-3db Bandwidth
50MHz
Bandwidth
50MHz
Package/Case
QFN
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
200nA
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Number of Inputs
2
Number of Outputs
4
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
15nA
Supply Type
Single
Weight
0.000247oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS3A24157RSERG4 Datasheet
Download the complete datasheet for Texas Instruments TS3A24157RSERG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

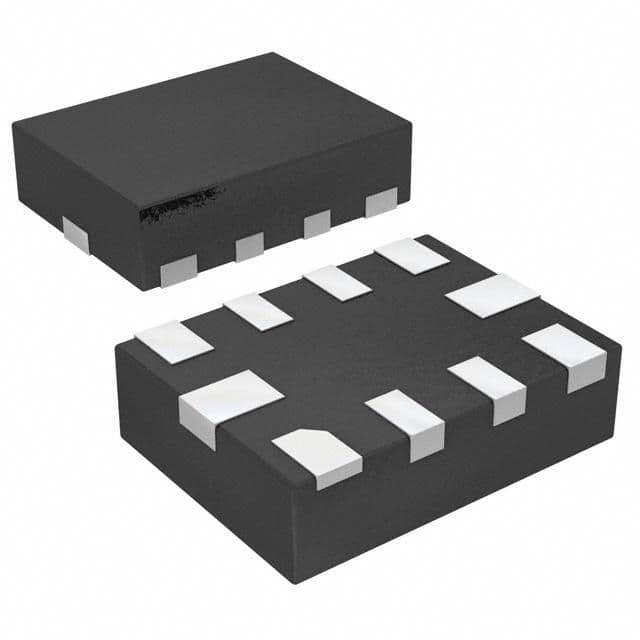

Product Images
