4-channel, 2:1 (SPDT) general-purpose analog switch with a 300MHz -3dB bandwidth. Features a single supply voltage range of 2.3V to 3.6V, with a typical operating voltage of 3V. This surface mount integrated circuit is housed in a 16-SOIC package, offering 4 input channels and 8 output channels. Operating temperature range is -40°C to 85°C, with low supply current of 2.5uA and a maximum of 7uA. The component is lead-free and RoHS compliant.
PackageSOIC
Current2.5uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS3A5018DR technical specifications.
General
-3db Bandwidth
300MHz
Bandwidth
300MHz
Package/Case
SOIC
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
7uA
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Bits
4
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
8
Operating Supply Voltage
3V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
2.5uA
Supply Type
Single
Weight
0.004998oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS3A5018DR Datasheet
Download the complete datasheet for Texas Instruments TS3A5018DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

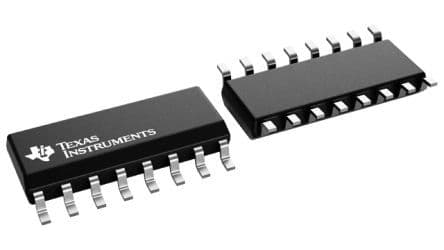

Product Images
