Texas Instruments
TS3DV520ERHUR
Multichannel differential switch & multiplexer targeting DVI & HDMI applications 56-WQFN -40 to 85
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments TS3DV520ERHUR technical specifications.
General
Bandwidth
1.2GHz
Package/Case
QFN
Lead Free
Lead Free
Logic Function
Multiplexer, Demultiplexer
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Channels
10
Number of Inputs
10
Number of Outputs
20
On-State Resistance
6R
Operating Supply Current
250uA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
0.25ns
RoHS Compliant
Yes
Supply Type
Single
Weight
0.004494oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS3DV520ERHUR Datasheet
Download the complete datasheet for Texas Instruments TS3DV520ERHUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

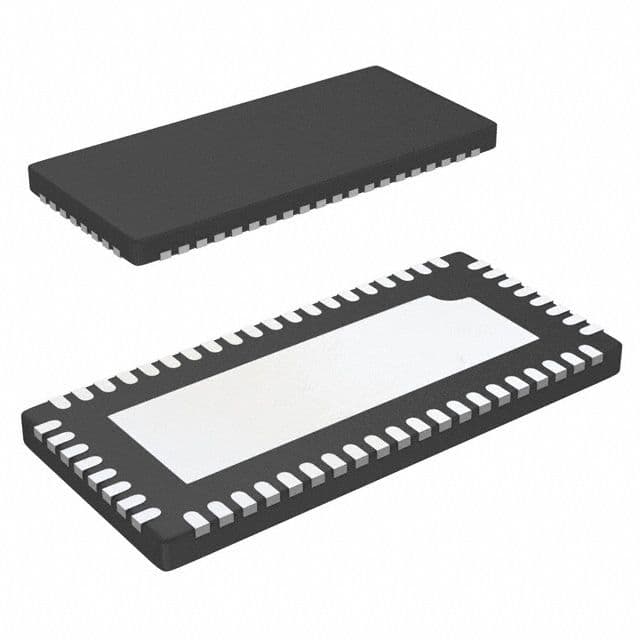

Product Images
