Single-supply, 1-channel, 2:1 (SPDT) analog switch featuring 0.75-Ohm on-resistance and 55MHz bandwidth. Operates from a 2.25V to 5.5V supply with low 10uA max supply current. Supports 1.8V input logic and is packaged in a compact 6-DSBGA (1.19mm x 0.79mm x 0.31mm) for surface mounting. Suitable for applications from -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS5A12301EYFPR technical specifications.
General
-3db Bandwidth
55MHz
Bandwidth
55MHz
Height
0.31mm
Lead Free
Lead Free
Length
1.19mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
10uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.25V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
2
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Type
Single
Thickness
500um
Width
0.79mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS5A12301EYFPR Datasheet
Download the complete datasheet for Texas Instruments TS5A12301EYFPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

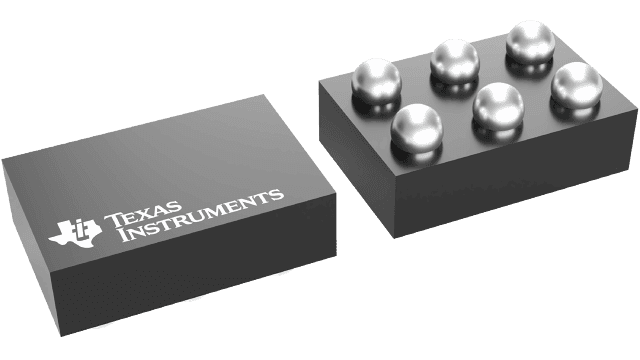

Product Images
