2-channel analog switch, 2:1 (SPDT) configuration, featuring 0.75-Ω on-state resistance. Operates with a 5-V supply and supports 1.8-V input logic. Offers a 260MHz -3dB bandwidth and a 260MHz bandwidth. Packaged in an 8-UQFN with dimensions of 1.55mm x 1.55mm x 0.55mm, suitable for surface mounting. Operates across a temperature range of -40°C to 85°C with a low supply current of 7.6µA.
Current7.6uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS5A21366RSER technical specifications.
General
-3db Bandwidth
260MHz
Bandwidth
260MHz
Height
0.55mm
Lead Free
Contains Lead
Length
1.55mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
9uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
7.6uA
Supply Type
Single
Width
1.55mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS5A21366RSER Datasheet
Download the complete datasheet for Texas Instruments TS5A21366RSER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

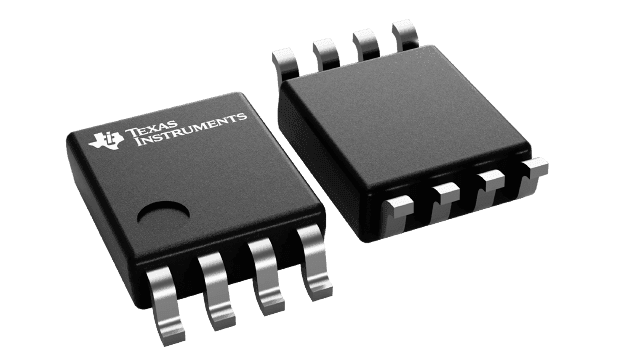

Product Images
