2-channel, 2:1 (SPDT) analog switch with 1-ohm on-state resistance and powered-off protection. Features a 100MHz -3dB bandwidth, operating from a 1.65V to 5.5V single supply. Surface mountable in a 10-UQFN package (2.05mm x 1.55mm x 0.55mm), this RoHS compliant component offers a low 50nA max supply current.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS5A23159RSER technical specifications.
General
-3db Bandwidth
100MHz
Bandwidth
100MHz
Package/Case
QFN
Drain to Source Resistance
900mR
Height
0.55mm
Lead Free
Lead Free
Length
2.05mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
50nA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Channels
2
Number of Circuits
2
Number of Inputs
2
Number of Outputs
4
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single
Thickness
550um
Weight
0.000247oz
Width
1.55mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS5A23159RSER Datasheet
Download the complete datasheet for Texas Instruments TS5A23159RSER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

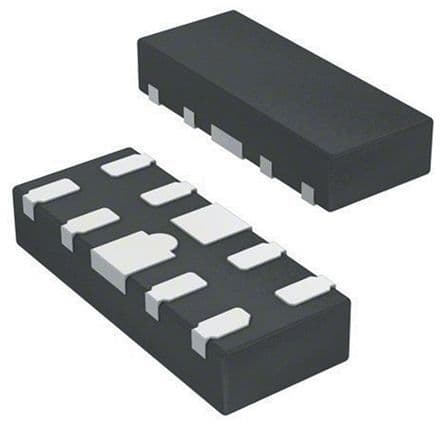

Product Images
