Texas Instruments
TS5A26542YZTR
0.75-Ω, 5-V, 2:1 (SPDT), 2-channel analog switch with input logic translation 12-DSBGA -40 to 85
PackageBGA
Current5.5nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS5A26542YZTR technical specifications.
General
Bandwidth
43MHz
Package/Case
BGA
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
100nA
Max Supply Voltage
5.5V
Min Supply Voltage
2.25V
Mount
Surface Mount
Number of Bits
2
Number of Channels
2
Number of Inputs
2
Number of Outputs
4
On-State Resistance
750mR
Operating Supply Current
5.5nA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5.5nA
Supply Type
Single
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS5A26542YZTR Datasheet
Download the complete datasheet for Texas Instruments TS5A26542YZTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

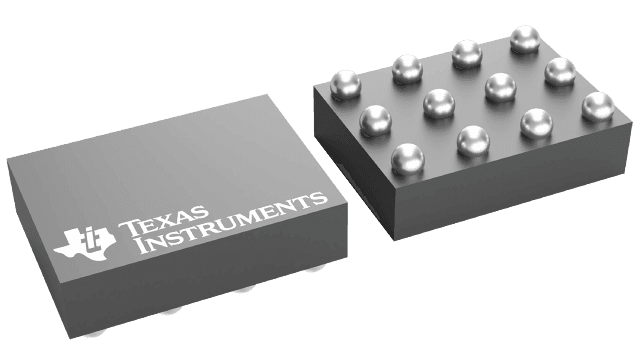

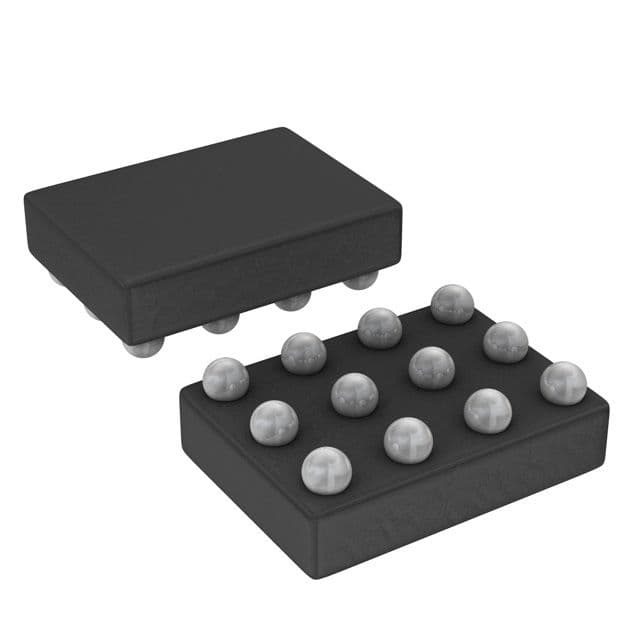

Product Images
