Single pole double throw (SPDT) analog switch, surface mountable in a 6-pin SOT-23 package. Features a 100MHz -3dB bandwidth and 1.1 Ohm drain-to-source resistance. Operates with a single supply voltage ranging from 1.65V to 5.5V, with a low maximum supply current of 100nA. Turn-on delay is 20ns and turn-off delay is 15ns. RoHS compliant and lead-free.
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS5A3159DBVR technical specifications.
General
-3db Bandwidth
100MHz
Bandwidth
100MHz
Package/Case
SOT-23-6
Drain to Source Resistance
1.1R
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
100nA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
2
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Type
Single
Termination
SMD/SMT
Thickness
1.2mm
Turn-Off Delay Time
15ns
Turn-On Delay Time
20ns
Weight
0.000229oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS5A3159DBVR Datasheet
Download the complete datasheet for Texas Instruments TS5A3159DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

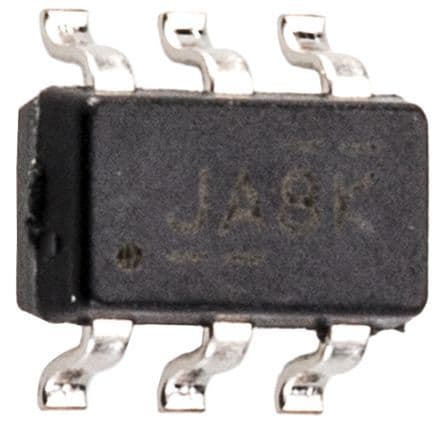

Product Images
