Automotive-grade 1-channel, 3:1 analog multiplexer featuring a 334MHz -3dB bandwidth. This surface-mount IC operates from a 1.65V to 5.5V single supply, with a maximum supply current of 10µA. It offers 1 input and 3 outputs, with an on-state resistance of 15Ω, and is housed in an 8-VSSOP package. Designed for automotive applications, it operates across a temperature range of -40°C to 125°C and is RoHS compliant.
PackageVSSOP
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS5A3357QDCURQ1 technical specifications.
General
| -3db Bandwidth | 334MHz |
| Bandwidth | 334MHz |
| Package/Case | VSSOP |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 10uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 3 |
| On-State Resistance | 15R |
| Operating Supply Current | 1uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Supply Current | 1uA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TS5A3357QDCURQ1 Datasheet
Download the complete datasheet for Texas Instruments TS5A3357QDCURQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

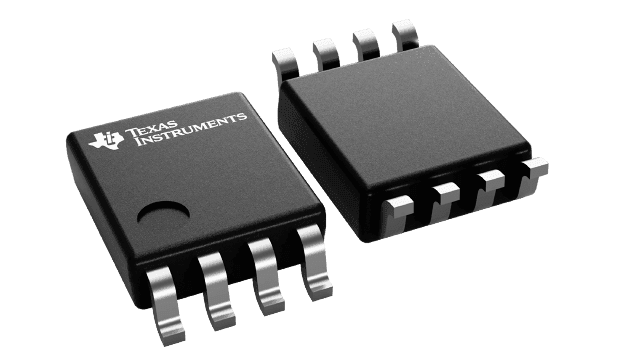

Product Images
