SPDT analog switch featuring 1-ohm on-resistance and 100MHz bandwidth. Operates from a single 1.65V to 5.5V supply with a maximum supply current of 50nA. This surface-mount IC is housed in a 6-pin SC70 package, suitable for applications requiring fast switching with turn-on and turn-off delays of 5ns and 12ns respectively. Operating temperature range is -40°C to 85°C.
PackageSC
Current10nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TS5A4624DCKT technical specifications.
General
-3db Bandwidth
90MHz
Bandwidth
100MHz
Package/Case
SC
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
50nA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
2
On-State Resistance
900mR
Operating Supply Current
10nA
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10nA
Supply Type
Single
Termination
SMD/SMT
Throw Configuration
SPDT
Turn-Off Delay Time
5ns
Turn-On Delay Time
12ns
Weight
8.8E-05oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TS5A4624DCKT Datasheet
Download the complete datasheet for Texas Instruments TS5A4624DCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

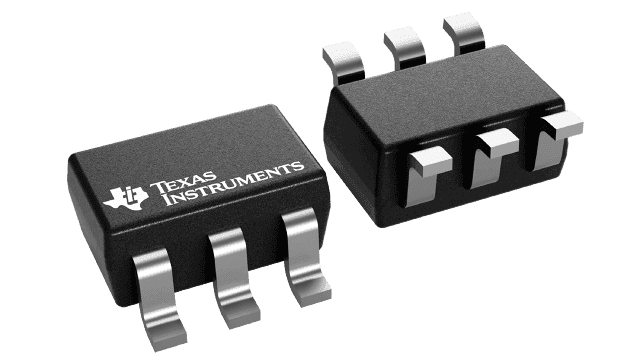

Product Images
