Triple port cable transceiver/arbiter operating at 800Mbps. Features 3 transceivers, 3 receivers, and 1 transmitter. Housed in a 80-pin HTQFP package with dimensions of 12.2mm (L) x 12.2mm (W) x 1.05mm (H). Supports a supply voltage range of 3V to 3.6V with a typical operating supply current of 120mA. Operates within a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackageHTQFP
Current150mA
Quick Jump:
Technical Specifications
Texas Instruments TSB81BA3EPFP technical specifications.
General
Package/Case
HTQFP
Data Rate
800Mbps
Height
1.05mm
Lead Free
Lead Free
Length
12.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
150mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Ports
3
Number of Receivers
3
Number of Transceivers
3
Number of Transmitters
1
Operating Supply Current
120mA
Operating Supply Voltage
3.3V
Package Quantity
96
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
150mA
Weight
0.013051oz
Width
12.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TSB81BA3EPFP Datasheet
Download the complete datasheet for Texas Instruments TSB81BA3EPFP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

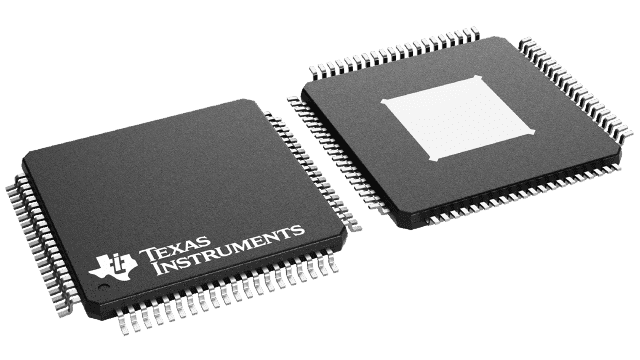

Product Images
