Texas Instruments
TSC2046EIZQCT
4-Wire Touch Screen Controller with low voltage digital I/O and extended ESD protection 48-BGA MICROSTAR JUNIOR -40 to 85
PackageVFBGA
Current280uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSC2046EIZQCT technical specifications.
General
Package/Case
VFBGA
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
780uA
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Supply Current
280uA
Weight
0.001185oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TSC2046EIZQCT Datasheet
Download the complete datasheet for Texas Instruments TSC2046EIZQCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

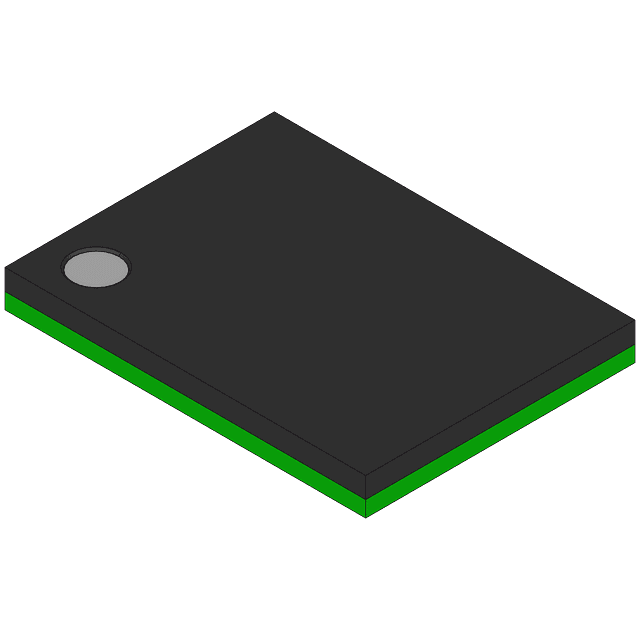

Product Images
