Texas Instruments
TSC2301IZQZR
4-Wire Touch Screen Controller, St. CODEC with HP Amplifier (Keypad Int. + 6 GPIOs) 120-BGA MICROSTAR JUNIOR -40 to 85
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TSC2301IZQZR technical specifications.
General
Package/Case
VFBGA
Interface
SPI, Serial, I2S, 4-WIRE
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Weight
0.002723oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TSC2301IZQZR Datasheet
Download the complete datasheet for Texas Instruments TSC2301IZQZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

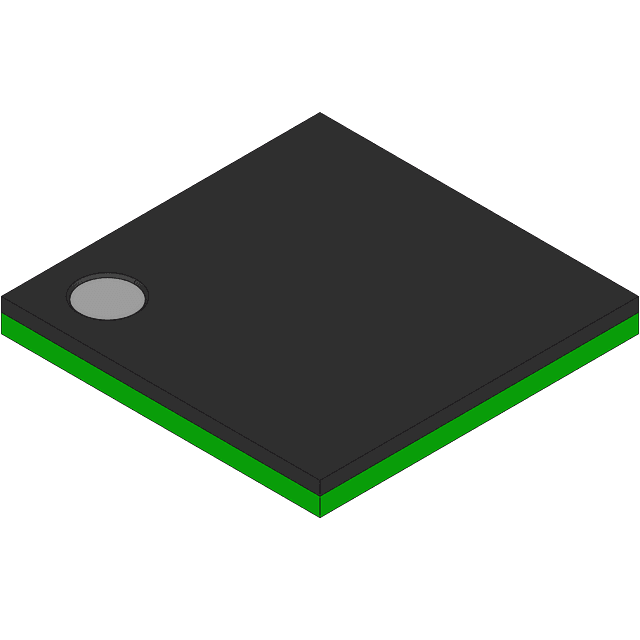

Product Images
