2-bit bidirectional voltage-level shifter for open-drain and push-pull applications. Features a 1.65V to 5.5V supply voltage range and supports a 24Mbps data rate. This surface-mount device in a BGA package offers a 260ns propagation delay and 102ns turn-on delay. Operating temperature range is -40°C to 85°C, with a low quiescent current of 14.4uA.
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TXS0102YZPR technical specifications.
General
Package/Case
BGA
Channel Type
Bidirectional
Data Rate
24Mbps
Height
0.31mm
High Level Output Current
-20uA
Lead Free
Lead Free
Length
1.92mm
Logic Function
Translator
Low Level Output Current
1mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Circuits
1
Number of Inputs
2
Output Current
1mA
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
260ns
Quiescent Current
14.4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
102ns
Weight
8.1E-05oz
Width
0.918mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TXS0102YZPR Datasheet
Download the complete datasheet for Texas Instruments TXS0102YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

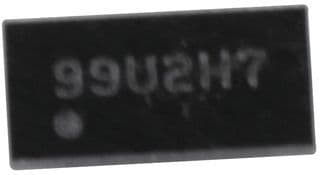

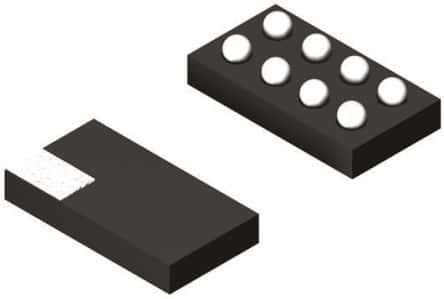

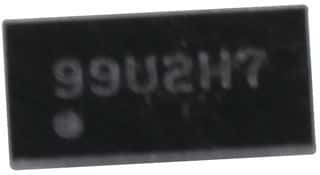

Product Images
