Texas Instruments
TXS0104EZXUR
4-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Applications 12-BGA MICROSTAR JUNIOR -40 to 85
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TXS0104EZXUR technical specifications.
General
Package/Case
BGA
Data Rate
24Mbps
High Level Output Current
-20uA
Lead Free
Lead Free
Logic Function
Translator
Low Level Output Current
1mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
4
Number of Channels
4
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
260ns
Quiescent Current
14.4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
260ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TXS0104EZXUR Datasheet
Download the complete datasheet for Texas Instruments TXS0104EZXUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

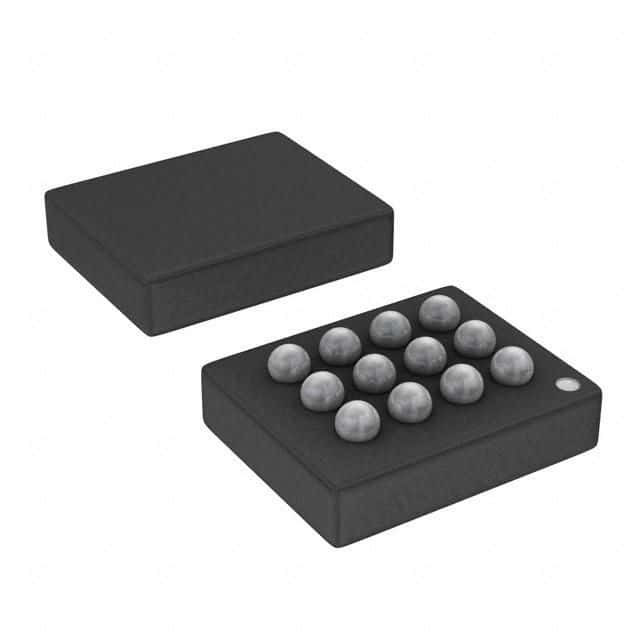

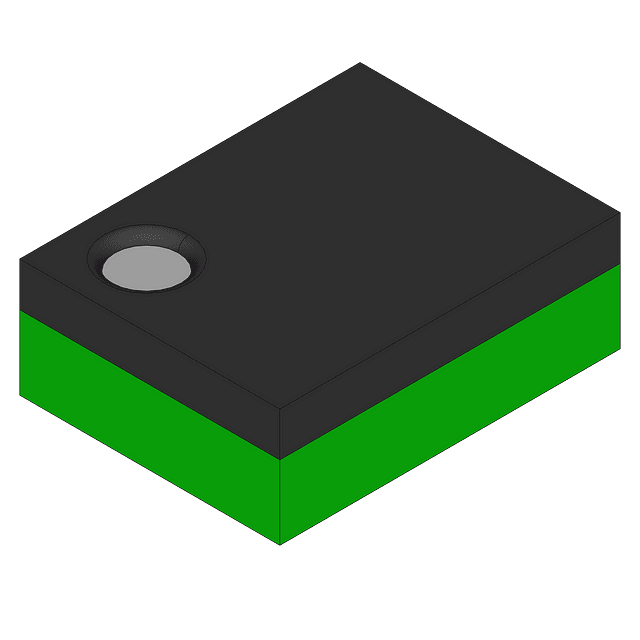

Product Images
