8-bit bidirectional voltage-level shifter IC, supporting open-drain and push-pull applications. Features 8 channels with a 60Mbps data rate and 4.8ns propagation delay. Operates from 1.2V to 5.5V supply voltage, with low quiescent current of 3uA. Packaged in a 20-TSSOP for surface mounting, this lead-free component is RoHS compliant and operates across a -40°C to 85°C temperature range.
PackageTSSOP
Current8uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TXS0108EPWR technical specifications.
General
Package/Case
TSSOP
Channel Type
Bidirectional
Data Rate
60Mbps
High Level Output Current
-50mA
Lead Free
Lead Free
Logic Function
Translator
Low Level Output Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Inputs
8
Output Current
620uA
Package Quantity
2000
Packaging
Tape and Reel
Propagation Delay
4.8ns
Quiescent Current
3uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
8uA
Termination
SMD/SMT
Turn-On Delay Time
312ns
Weight
0.002716oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TXS0108EPWR Datasheet
Download the complete datasheet for Texas Instruments TXS0108EPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

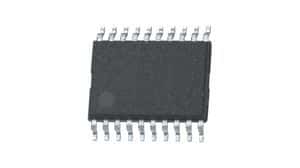

Product Images
