8-bit bidirectional voltage-level shifter for open-drain and push-pull applications. Features a 1.2V to 5.5V operating supply range and a 60Mbps data rate. This surface-mount integrated circuit offers 8 channels with a propagation delay of 312ns. Packaged in a 2.5mm x 3mm BGA with a height of 610um, it operates from -40°C to 85°C.
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TXS0108EZXYR technical specifications.
General
Package/Case
BGA
Channel Type
Bidirectional
Data Rate
60Mbps
Height
610um
High Level Output Current
-50mA
Lead Free
Lead Free
Length
2.5mm
Logic Function
Translator
Low Level Output Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount
Nominal Supply Current
3uA
Number of Bits
8
Number of Circuits
1
Number of Inputs
8
Number of Outputs
8
Packaging
Tape and Reel
Propagation Delay
312ns
Quiescent Current
3uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
360um
Turn-On Delay Time
312ns
Weight
0.000769oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TXS0108EZXYR Datasheet
Download the complete datasheet for Texas Instruments TXS0108EZXYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

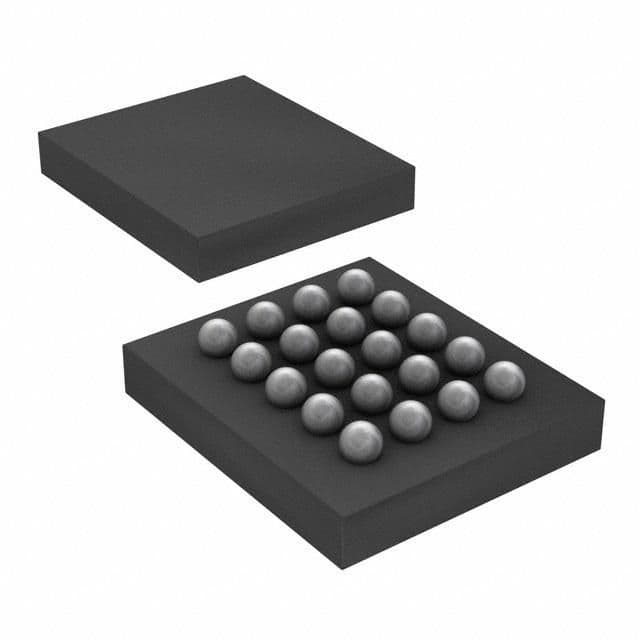

Product Images
