Technical Specifications
Texas Instruments UA723CNSR technical specifications.
General
Package/Case
SOP
Dropout Voltage
3V
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
9.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
150mA
Max Output Voltage
37V
Min Output Voltage
2V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Adjustable
Output Voltage
37V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
86dB
Quiescent Current
4mA
RoHS Compliant
Yes
Weight
0.007348oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA723CNSR Datasheet
Download the complete datasheet for Texas Instruments UA723CNSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

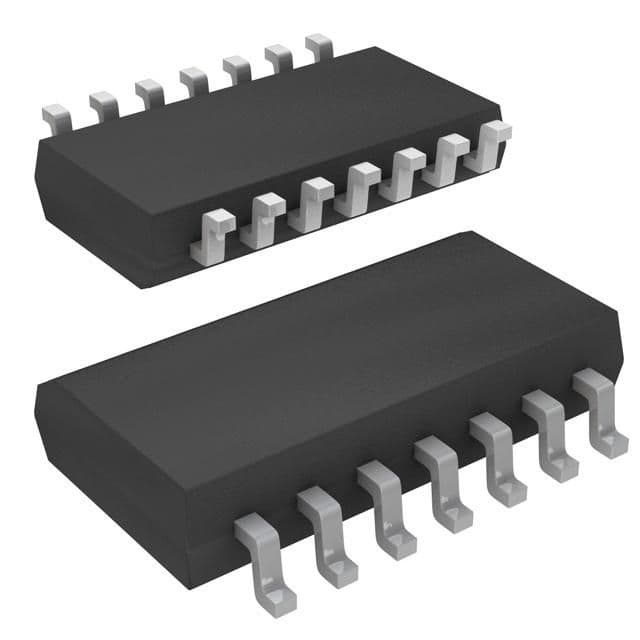

Product Images
