Positive fixed 5V output voltage regulator with 100mA maximum output current. Features a 5% output voltage accuracy and a maximum input voltage of 20V, operating from a minimum 7V input. This surface mount component is housed in a SOT-89 package, suitable for operation between -40°C and 125°C. Offers a Power Supply Rejection Ratio (PSRR) of 49dB and a quiescent current of 3.8mA.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA78L05ACPK technical specifications.
General
Accuracy
5%
Package/Case
SOT-89
Lead Free
Lead Free
Max Input Voltage
20V
Min Input Voltage
7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
5%
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
49dB
Quiescent Current
3.8mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.004603oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA78L05ACPK Datasheet
Download the complete datasheet for Texas Instruments UA78L05ACPK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

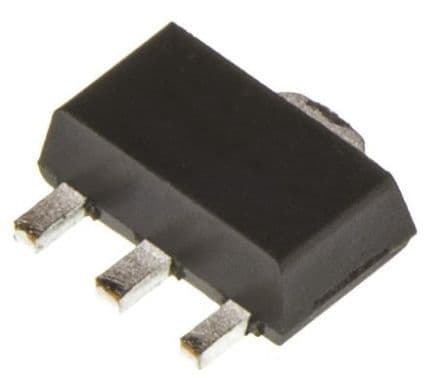

Product Images
