5V fixed output linear voltage regulator, delivering up to 100mA output current. Features a 1.7V dropout voltage and a maximum input voltage of 20V. Operates within a wide temperature range of -40°C to 125°C with 5% output voltage accuracy. Packaged in an 8-SOIC (D) case, this RoHS compliant component is supplied on tape and reel.
PackageD
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA78L05AIDR technical specifications.
General
Accuracy
5%
Package/Case
D
Dropout Voltage
1.7V
Lead Free
Lead Free
Max Input Voltage
20V
Min Input Voltage
7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
5V
Min Output Voltage
5V
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
5%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
49dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.002561oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA78L05AIDR Datasheet
Download the complete datasheet for Texas Instruments UA78L05AIDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

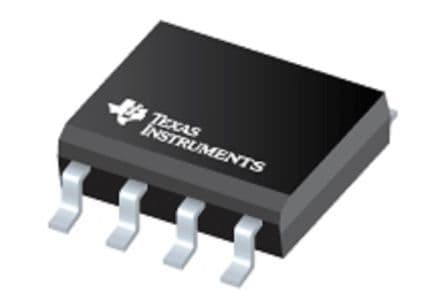

Product Images
