100mA, positive, fixed output linear voltage regulator with a nominal output voltage of 6.2V and 5% accuracy. Features a maximum input voltage of 20V, a dropout voltage of 1.7V, and a quiescent current of 3.9mA. Operates across a temperature range of -40°C to 125°C. Packaged in a 3-pin SOT-89 surface mount configuration, measuring 4.5mm in length, 2.5mm in width, and 1.5mm in height. RoHS compliant and lead-free.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA78L06ACPK technical specifications.
General
Accuracy
5%
Package/Case
SOT-89
Dropout Voltage
1.7V
Height
1.5mm
Lead Free
Lead Free
Length
4.5mm
Max Input Voltage
20V
Min Input Voltage
8.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
6.2V
Mount
Surface Mount
Nominal Output Voltage
6.2V
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
6.2V
Output Voltage Accuracy
5%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
48dB
Quiescent Current
3.9mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA78L06ACPK Datasheet
Download the complete datasheet for Texas Instruments UA78L06ACPK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

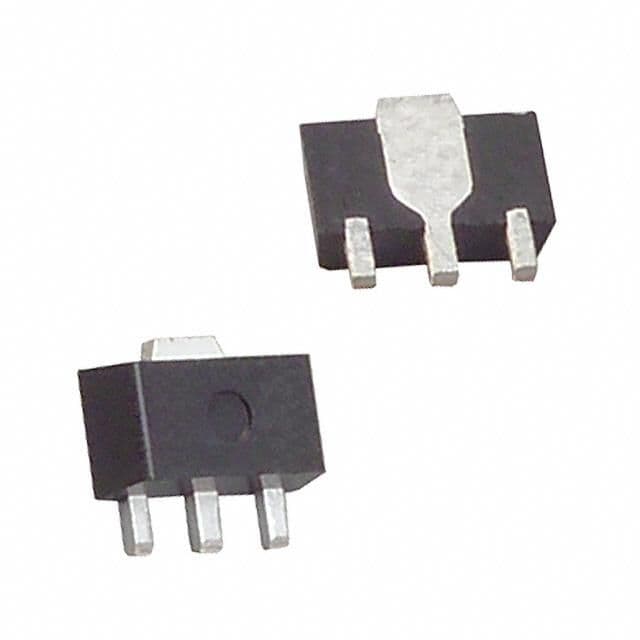

Product Images
