9V positive linear voltage regulator, offering 100mA output current with 5% accuracy. Features a 1.7V dropout voltage and a maximum input voltage of 24V. Operates within a temperature range of -40°C to 125°C and is housed in a compact SOT-89 package. This RoHS compliant component is supplied on tape and reel.
PackageSOT-89
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA78L09ACPK technical specifications.
General
Accuracy
5%
Package/Case
SOT-89
Dropout Voltage
1.7V
Height
1.5mm
Lead Free
Lead Free
Length
4.5mm
Max Input Voltage
24V
Min Input Voltage
11.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
9V
Min Output Voltage
9V
Nominal Output Voltage
9V
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
9V
Output Voltage Accuracy
5%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
45dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA78L09ACPK Datasheet
Download the complete datasheet for Texas Instruments UA78L09ACPK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

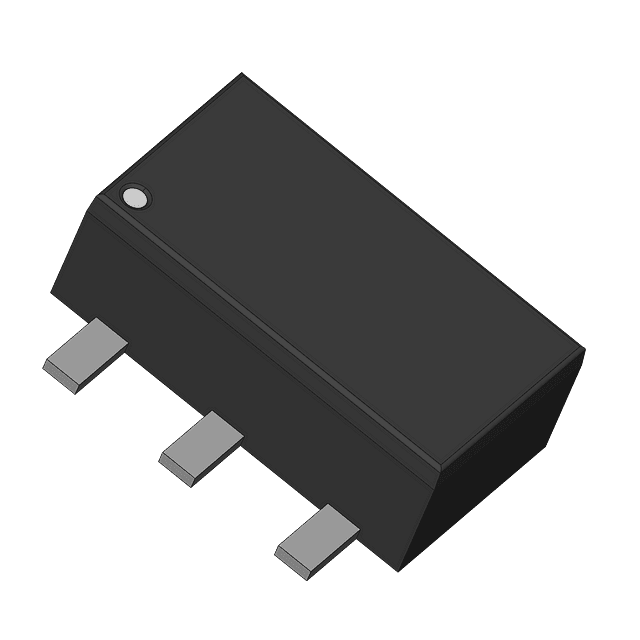

Product Images
