Positive fixed output linear voltage regulator (LDO) with a nominal output voltage of 10V and a maximum output current of 100mA. Features a 5% voltage accuracy, 1.7V dropout voltage, and a maximum input voltage of 25V. Operates within a temperature range of -40°C to 125°C and is housed in a 3-pin TO-92 package. This RoHS compliant component is supplied in bulk packaging.
PackageTO-92-3
Voltage10V
Current Rating100mA
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA78L10ACLP technical specifications.
General
Accuracy
5%
Package/Case
TO-92-3
Current Rating
100mA
Dropout Voltage
1.7V
Height
3.68mm
Lead Free
Lead Free
Length
4.83mm
Max Input Voltage
25V
Min Input Voltage
12.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
10V
Min Output Voltage
10V
Max Supply Voltage
25V
Min Supply Voltage
12.5V
Nominal Output Voltage
10V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
10V
Package Quantity
1000
Packaging
Bulk
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
6mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
5%
Voltage
10V
Weight
0.00752oz
Width
3.43mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA78L10ACLP Datasheet
Download the complete datasheet for Texas Instruments UA78L10ACLP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

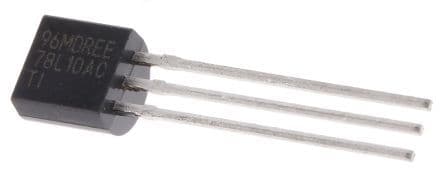

Product Images
