100mA fixed positive linear voltage regulator with a 12V output voltage and 5% accuracy. Features a 1.7V dropout voltage, 42dB PSRR, and 6mA quiescent current. Operates with an input voltage range of 14.5V to 27V, and a maximum output current of 100mA. Packaged in a TO-92-3 case, this RoHS compliant component is suitable for operation from -40°C to 125°C.
PackageTO-92-3
Current Rating100mA
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA78L12ACLP technical specifications.
General
Accuracy
5%
Package/Case
TO-92-3
Current Rating
100mA
Dropout Voltage
1.7V
Lead Free
Lead Free
Max Input Voltage
27V
Min Input Voltage
14.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
12V
Min Output Voltage
12V
Nominal Output Voltage
12V
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Output Voltage Accuracy
5%
Package Quantity
1000
Packaging
Bulk
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
42dB
Quiescent Current
6mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.00752oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA78L12ACLP Datasheet
Download the complete datasheet for Texas Instruments UA78L12ACLP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

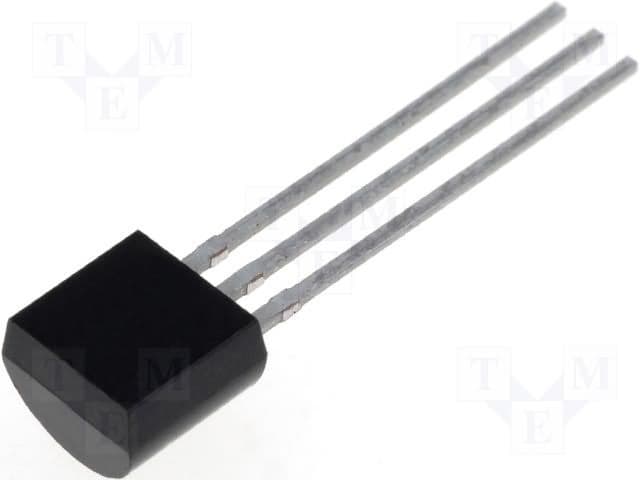

Product Images
