Positive fixed linear voltage regulator, 15V output voltage, 100mA maximum output current. Features a 1.7V dropout voltage and 5% accuracy. Operates with a minimum input voltage of 17.5V and a maximum input voltage of 30V. Packaged in an 8-SOIC surface mount case, with an operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UA78L15ACD technical specifications.
General
Accuracy
5%
Package/Case
SOIC
Dropout Voltage
1.7V
Height
1.58mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
30V
Min Input Voltage
17.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Mount
Surface Mount
Nominal Output Voltage
15V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
15V
Package Quantity
75
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
39dB
Quiescent Current
4.6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
1.58mm
Weight
0.002561oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UA78L15ACD Datasheet
Download the complete datasheet for Texas Instruments UA78L15ACD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

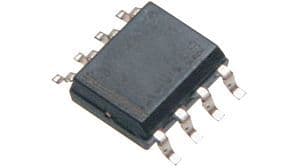

Product Images
