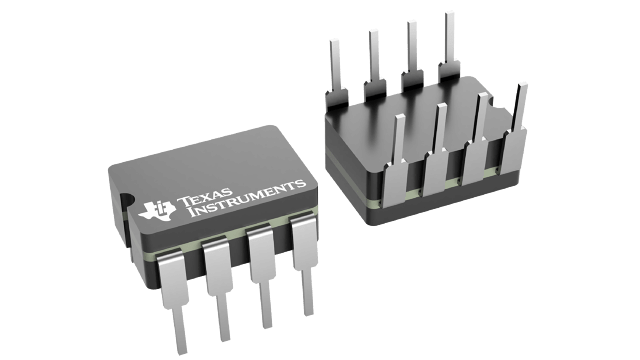

The UC1843J is a CDIP packaged DC/DC controller from Texas Instruments, operating between -55°C and 125°C. It can handle up to 1kA of output current and 30V of supply voltage. The device is designed for boost and flyback topologies with a 100% duty cycle. It is available in a CDIP package, packaged in a rail or tube format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments UC1843J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | CDIP |
| Duty Cycle | 100% |
| Fall Time | 50ns |
| Height | 4.57mm |
| Length | 10.16mm |
| Max Duty Cycle | 100% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 30V |
| Operating Supply Voltage | 2.5V |
| Output Current | 1kA |
| Output Voltage | 5.05V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Topology | Boost, Flyback |
| Width | 7.11mm |
| RoHS | Not CompliantNo |
