The UC1845J883B is a CDIP 8-pin boost/flyback DC/DC controller from Texas Instruments. It operates at a maximum supply voltage of 30V and can handle an output current of 1kA. The device has a maximum operating temperature range of -55°C to 125°C. It is available in a CDIP package and is packaged in rail/Tube. The UC1845J883B is not radiation hardened and is not RoHS compliant due to containing lead.
PackageCDIP
Quick Jump:
Technical Specifications
Texas Instruments UC1845J883B technical specifications.
General
| Package/Case | CDIP |
| Duty Cycle | 50% |
| Fall Time | 50ns |
| Lead Free | Contains Lead |
| Max Duty Cycle | 50% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 30V |
| Output Current | 1kA |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Topology | Boost, Flyback |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments UC1845J883B Datasheet
Download the complete datasheet for Texas Instruments UC1845J883B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

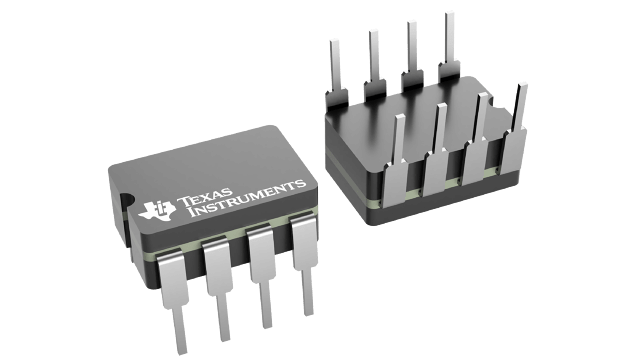

Product Images
