Texas Instruments
UC2625DWG4
3-phase sensored trapezoidal control BLDC gate driver for -40°C to +105°C applications 28-SOIC -40 to 85
PackageSOIC
Current14.5mA
Quick Jump:
Technical Specifications
Texas Instruments UC2625DWG4 technical specifications.
General
Package/Case
SOIC
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Supply Voltage
18V
Min Supply Voltage
10V
Number of Outputs
1
Output Current
200mA
Output Voltage
50V
Package Quantity
20
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
14.5mA
Weight
0.027937oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UC2625DWG4 Datasheet
Download the complete datasheet for Texas Instruments UC2625DWG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

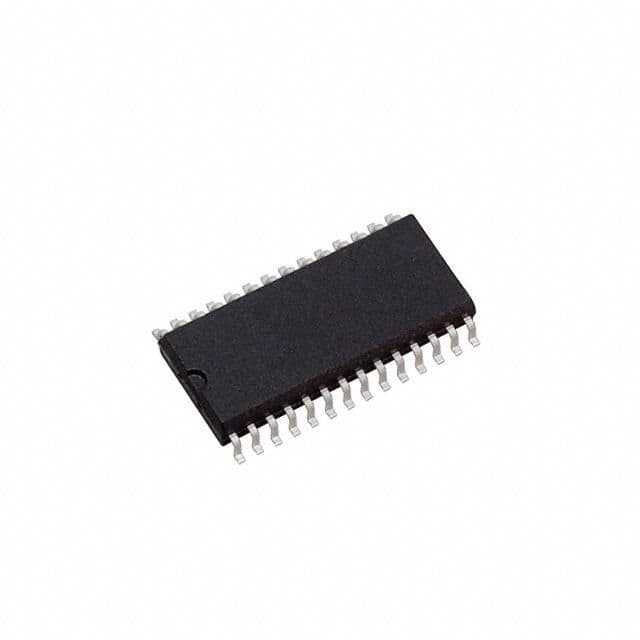

Product Images
