Texas Instruments
UC2844AD8
30-V, 1A, 500KHz current mode PWM controller with 16V/10V UVLO 50% duty cycle, 40°C to 85°C 8-SOIC -40 to 85
Frequency450kHz
PackageD
Quick Jump:
Technical Specifications
Texas Instruments UC2844AD8 technical specifications.
General
Package/Case
D
Duty Cycle
50%
Fall Time
50ns
Frequency
450kHz
Lead Free
Lead Free
Max Duty Cycle
50%
Max Frequency
500kHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
30V
Min Supply Voltage
12V
Nominal Supply Current
17mA
Number of Outputs
1
Operating Supply Current
17mA
Output Current
1A
Output Voltage
15V
Package Quantity
75
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Topology
Buck-Boost, Flyback
Weight
0.002561oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UC2844AD8 Datasheet
Download the complete datasheet for Texas Instruments UC2844AD8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

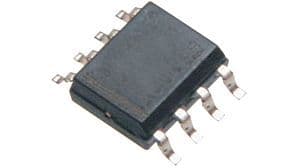

Product Images
