Texas Instruments
UC3525AQTR
0.5A SWITCHING CONTROLLER, 400kHz SWITCHING FREQ-MAX, PQCC20, GREEN, PLASTIC, LCC-20
Frequency400kHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UC3525AQTR technical specifications.
General
| Package/Case | PLCC |
| Duty Cycle | 45% |
| Fall Time | 50ns |
| Lead Free | Lead Free |
| Max Duty Cycle | 49% |
| Max Frequency | 400kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Operating Supply Voltage | 35V |
| Output Current | 400mA |
| Output Voltage | 18V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Flyback, Push-Pull |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments UC3525AQTR Datasheet
Download the complete datasheet for Texas Instruments UC3525AQTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

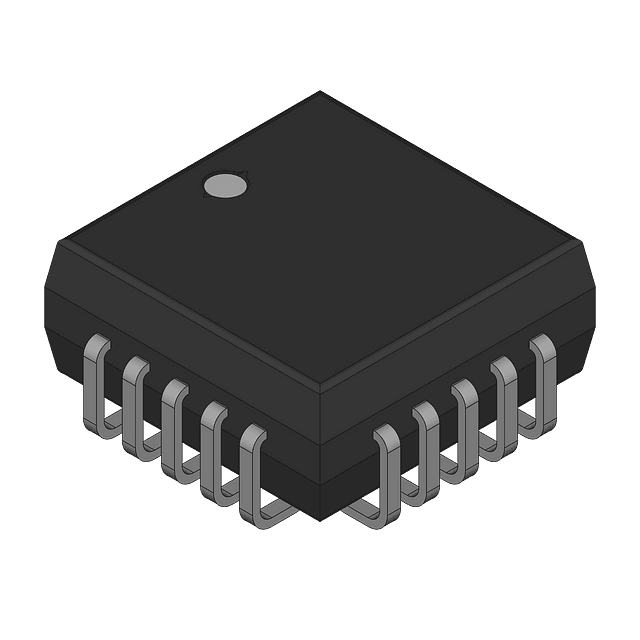

Product Images
