High-speed power driver IC featuring a single channel and output. Operates from a 5V to 40V supply voltage with a typical 20V operating voltage. Delivers up to 1.5A output current with a maximum power dissipation of 3W. Fall time is 60ns, propagation delay is 100ns, and turn-on delay time is 100ns. Packaged in a TO-220 through-hole mount, this RoHS compliant component is suitable for a 0°C to 70°C operating temperature range.
PackageTO-220
Current12mA
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Texas Instruments UC3705T technical specifications.
General
Package/Case
TO-220
Fall Time
60ns
Height
8.51mm
Lead Free
Lead Free
Length
10.16mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Power Dissipation
3W
Max Supply Current
12mA
Max Supply Voltage
40V
Min Supply Voltage
5V
Mount
Through Hole
Number of Channels
1
Number of Drivers
1
Number of Outputs
1
Operating Supply Voltage
20V
Output Current
1.5A
Output Voltage
40V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
3W
Propagation Delay
100ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
12mA
Termination
Through Hole
Turn-On Delay Time
100ns
Weight
0.068079oz
Width
4.58mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UC3705T Datasheet
Download the complete datasheet for Texas Instruments UC3705T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

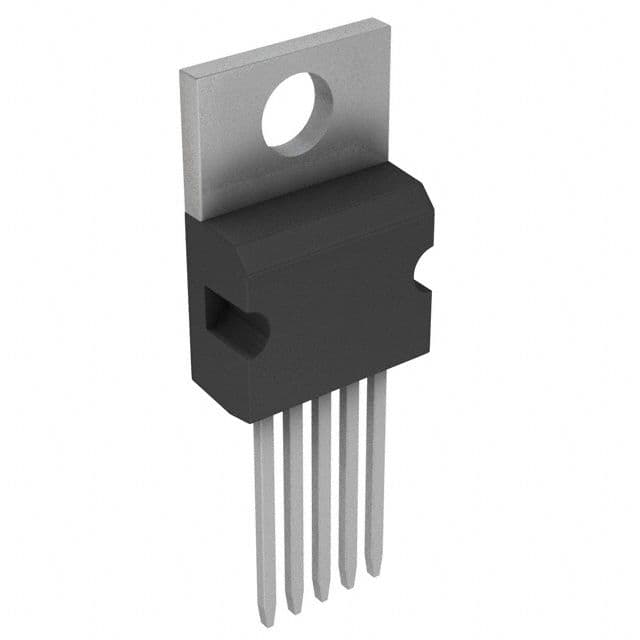

Product Images
