Frequency500kHz
PackageHTSSOP
Current100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC27221PWP technical specifications.
General
Package/Case
HTSSOP
Channel Type
Synchronous
Fall Time
35ns
Frequency
500kHz
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Output Current
4A
Max Power Dissipation
3W
Max Supply Voltage
20V
Min Supply Voltage
8.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Output Current
3A
Package Quantity
90
Packaging
Rail/Tube
Power Dissipation
3W
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
100mA
Weight
0.002046oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCC27221PWP Datasheet
Download the complete datasheet for Texas Instruments UCC27221PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

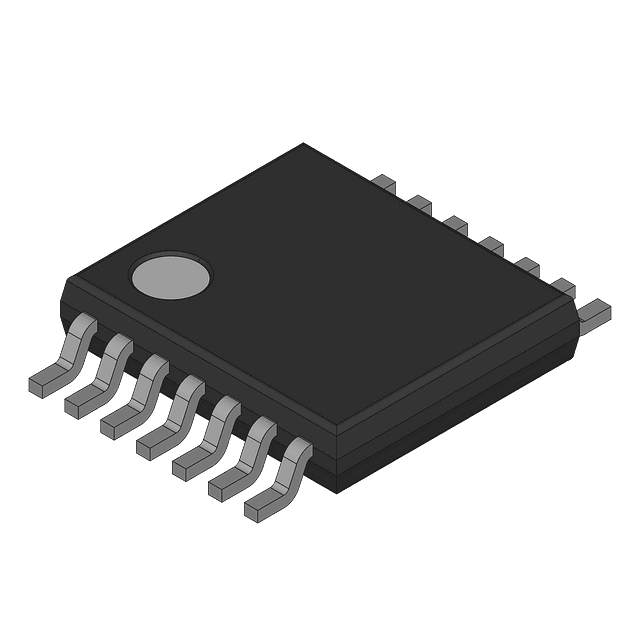

Product Images
