Texas Instruments
UCC2808AN-1G4
1A SWITCHING CONTROLLER, 1000kHz SWITCHING FREQ-MAX, PDIP8, GREEN, PLASTIC, DIP-8
Frequency1MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments UCC2808AN-1G4 technical specifications.
General
Package/Case
PDIP
Duty Cycle
50%
Fall Time
25ns
Lead Free
Lead Free
Max Duty Cycle
50%
Max Frequency
1MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
15V
Mount
Through Hole
Number of Outputs
2
Output Current
1A
Output Voltage
500mV
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
UCC2808A-1
Topology
Push-Pull
Weight
0.018455oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCC2808AN-1G4 Datasheet
Download the complete datasheet for Texas Instruments UCC2808AN-1G4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

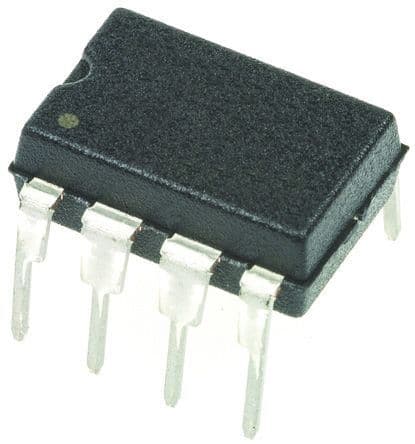

Product Images
