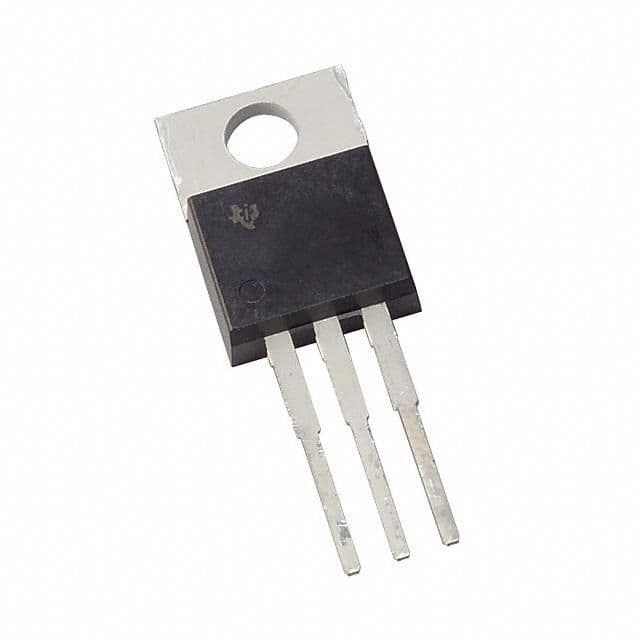

3-A, positive, fixed output linear voltage regulator with a 5V nominal output voltage. Features a low dropout voltage of 400mV at 3A. Operates within a -40°C to 85°C temperature range and supports input voltages from 5.4V to 9V. Packaged in a TO-220-3 case, this RoHS compliant component offers 2.5% accuracy and a quiescent current of 400uA.
PackageTO-220-3
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments UCC283T-5 technical specifications.
General
Accuracy
2.5%
Package/Case
TO-220-3
Dropout Voltage
400mV
Height
9.02mm
Input Bias Current
400uA
Lead Free
Lead Free
Length
10.17mm
Max Input Voltage
9V
Min Input Voltage
5.4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5V
Min Output Voltage
5V
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
400uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.58mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCC283T-5 Datasheet
Download the complete datasheet for Texas Instruments UCC283T-5 to view detailed technical specifications.
