1MHz current mode PWM controller for DC/DC power management. Features 100% duty cycle, 20ns fall time, and operates from 7.6V to 18V supply voltage. Supports isolated topologies including Buck-Boost and Flyback, with a 200mA output current capability. Designed for surface mount installation in an 8-SOIC package, offering a wide operating temperature range of -40°C to 105°C. Low quiescent current of 2.3mA.
Frequency1MHz
PackageSOIC
Current2.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCC28C43D technical specifications.
General
Package/Case
SOIC
Duty Cycle
100%
Fall Time
20ns
Frequency
1MHz
Height
1.58mm
Isolation
Isolated
Lead Free
Lead Free
Length
4.9mm
Max Duty Cycle
100%
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
7.6V
Mount
Surface Mount
Number of Outputs
1
Output Current
200mA
Output Voltage
18V
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
2.3mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2.3mA
Topology
Buck-Boost, Flyback
Weight
0.002561oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCC28C43D Datasheet
Download the complete datasheet for Texas Instruments UCC28C43D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

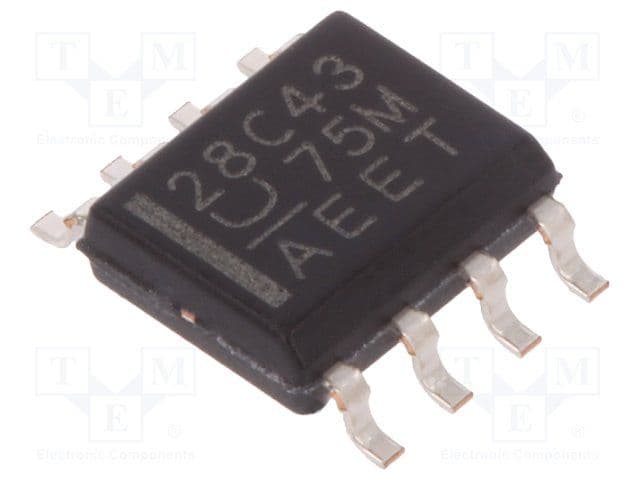

Product Images
