Frequency220kHz
PackageD
Power1W
Quick Jump:
Technical Specifications
Texas Instruments UCC3818D technical specifications.
General
Package/Case
D
Frequency
220kHz
Lead Free
Lead Free
Max Input Voltage
7.613V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
1.2A
Max Power Dissipation
1W
Max Supply Voltage
17V
Min Supply Voltage
12V
Number of Outputs
1
Operating Supply Current
4mA
Output Voltage
5.5V
Packaging
Rail/Tube
Power Dissipation
1W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Weight
0.004998oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCC3818D Datasheet
Download the complete datasheet for Texas Instruments UCC3818D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

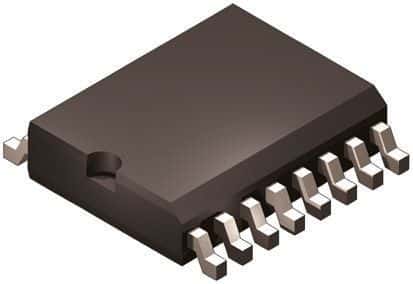

Product Images
