Texas Instruments
UCD74120RVFR
14 V, 25 A synchronous buck power stage with output current monitoring 40-LQFN-CLIP -40 to 125
PackageModule
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments UCD74120RVFR technical specifications.
General
Package/Case
Module
Lead Free
Contains Lead
Max Input Voltage
14V
Min Input Voltage
4.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
25A
Output Voltage
6.8V
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments UCD74120RVFR Datasheet
Download the complete datasheet for Texas Instruments UCD74120RVFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

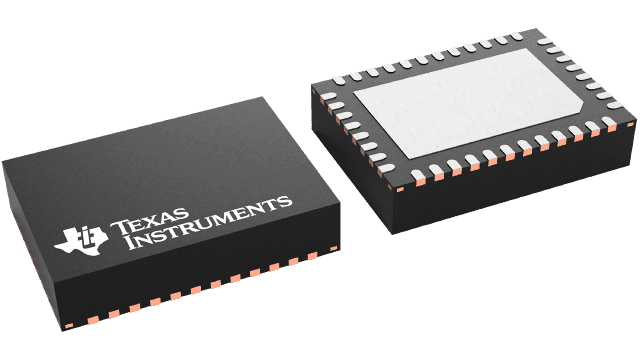

Product Images
