Eight-channel NPN Darlington transistor array in a 20-pin PDIP package. Features a 50V collector-emitter breakdown voltage and a 500mA maximum collector current per channel. Offers a low collector-emitter saturation voltage of 1.1V. Designed for through-hole mounting with a wide operating temperature range of -65°C to 85°C. RoHS compliant and lead-free.
PackagePDIP
Current Rating500mA
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Texas Instruments ULN2803AN technical specifications.
General
Package/Case
PDIP
Collector Emitter Breakdown Voltage
50V
Collector Emitter Saturation Voltage
1.1V
Collector Emitter Voltage (VCEO)
50V
Collector-emitter Voltage-Max
1.6V
Current Rating
500mA
Emitter Base Voltage (VEBO)
50V
Height
4.57mm
Lead Free
Lead Free
Length
22.48mm
Max Collector Current
500mA
Max Operating Temperature
85°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Drivers
8
Number of Elements
8
Package Quantity
20
Packaging
Rail/Tube
Polarity
NPN
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
DC Rated Voltage
50V
Weight
0.04466oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ULN2803AN Datasheet
Download the complete datasheet for Texas Instruments ULN2803AN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

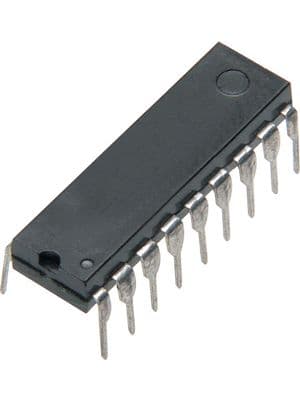

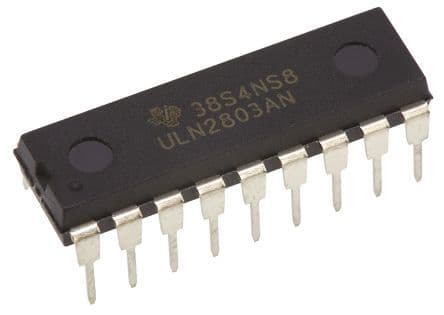

Product Images
