Texas Instruments
WL1837MODGIMOCT
WLAN+BTCombo Module IEEE 802.11a/b/g/n Bluetooth v4.1 100-Pin SMD Module
Frequency5GHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments WL1837MODGIMOCT technical specifications.
General
Package/Case
SMD/SMT
Current - Receiving
85mA
Current - Transmitting
510mA
Data Rate
54Mbps
Frequency
5GHz
Interface
SDIO, UART
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
4.8V
Min Supply Voltage
2.9V
Mount
Surface Mount
Packaging
Cut Tape
RoHS Compliant
Yes
Sensitivity
-95dBm
Series
WiLink™
Compliance
RoHS
Compliant
Datasheet
Texas Instruments WL1837MODGIMOCT Datasheet
Download the complete datasheet for Texas Instruments WL1837MODGIMOCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

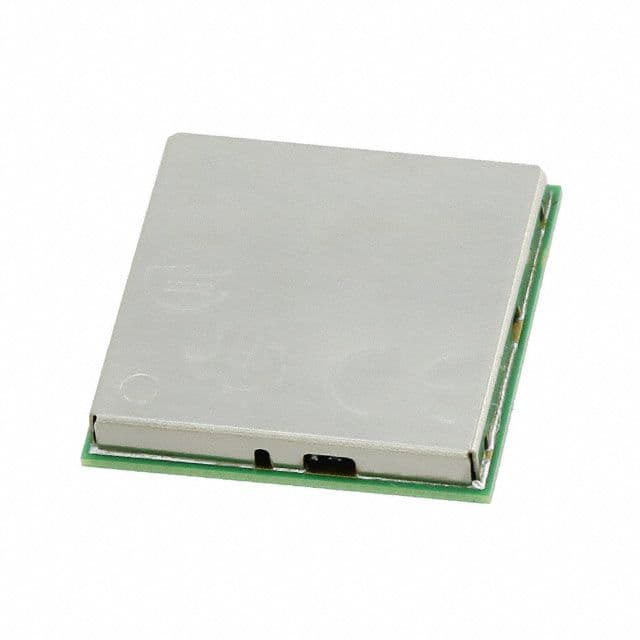

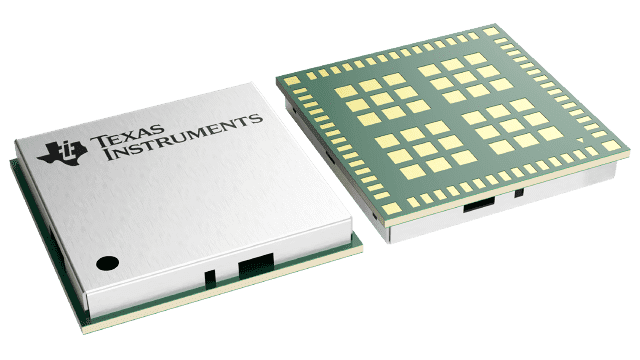

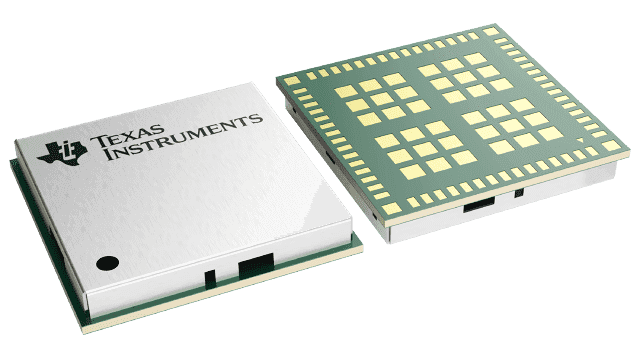

Product Images
