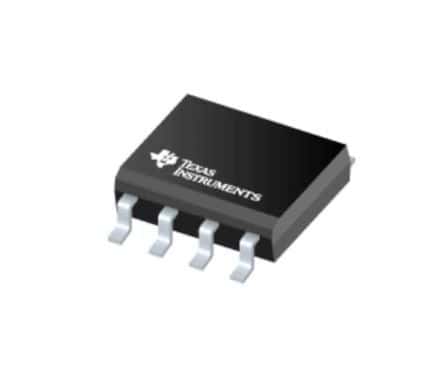

This sensor and detector interface IC features a 2-wire interface and a 380kHz bandwidth. Operating from a 7.5V to 36V supply, it provides a 20mA output current and a 2.5V reference voltage. The device is a single-channel, surface-mount component in an 8-pin SOIC package, designed for operation between -40°C and 85°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments XTR115UA technical specifications.
General
Bandwidth
380kHz
Package/Case
SOIC
Height
1.58mm
Interface
2-Wire
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
7.5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Current
20mA
Output Current
20mA
Output Type
Voltage
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
200uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
2.5V
RoHS Compliant
Yes
Termination
SMD/SMT
Weight
0.002677oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments XTR115UA Datasheet
Download the complete datasheet for Texas Instruments XTR115UA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
