The Toshiba 74VHC240FT(BE) is a dual inverting buffer integrated circuit with a 4-bit, 2-element configuration. It features high level and low level output currents of 8mA. The device is packaged in a TSSOP package and is designed for surface mount applications. The operating temperature range is from -40°C to 125°C, making it suitable for automotive applications. The 74VHC240FT(BE) is compliant with AEC-Q100 standards.
PackageTSSOP
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Toshiba 74VHC240FT(BE) technical specifications.
General
| Package/Case | TSSOP |
| High Level Output Current | 8mA |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 2 |
| Output Type | PUSH-PULL, 3-STATE |
| Packaging | Tape and Reel |
| Polarity | Inverting |
| Radiation Hardening | No |
| Series | Automotive, AEC-Q100, 74VHC |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba 74VHC240FT(BE) Datasheet
Download the complete datasheet for Toshiba 74VHC240FT(BE) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

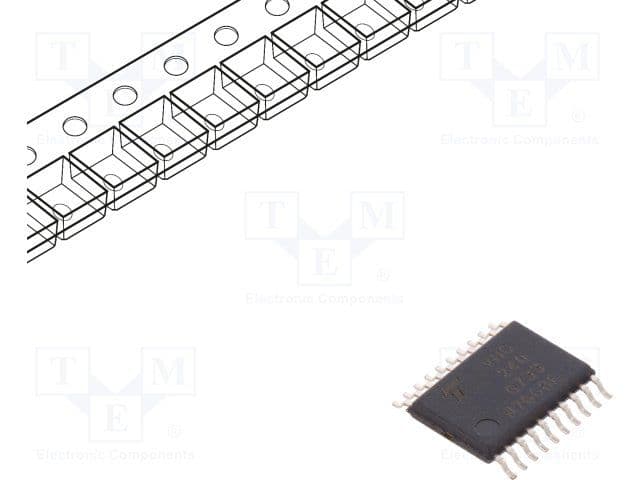

Product Images
