Technical Specifications
Toshiba SSM3J130TU(TE85L) technical specifications.
General
Package/Case
SMD/SMT
Continuous Drain Current (ID)
4.4A
Drain to Source Voltage (Vdss)
20V
Gate to Source Voltage (Vgs)
8V
Height
0.7mm
Input Capacitance
1.8nF
Length
2.1mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Surface Mount
Packaging
Tape and Reel
Radiation Hardening
No
Rds On Max
25.8mR
RoHS Compliant
No
Turn-Off Delay Time
133ns
Turn-On Delay Time
25ns
Width
1.7mm
Compliance
RoHS
Not CompliantNo
Datasheet
Toshiba SSM3J130TU(TE85L) Datasheet
Download the complete datasheet for Toshiba SSM3J130TU(TE85L) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

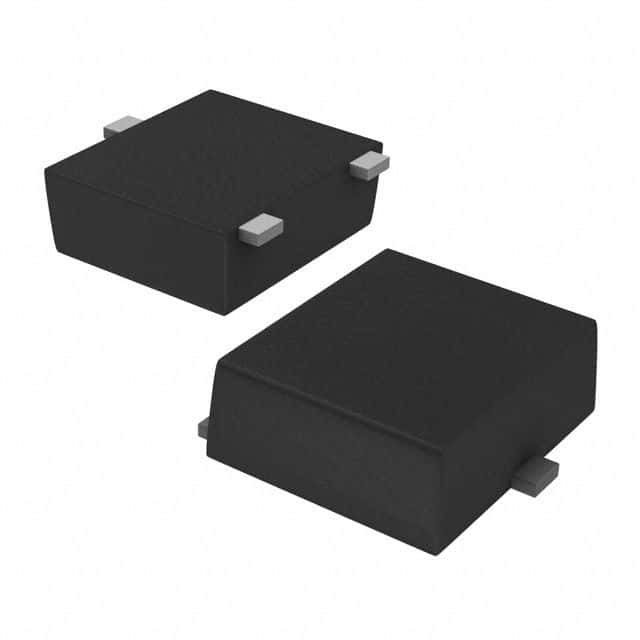

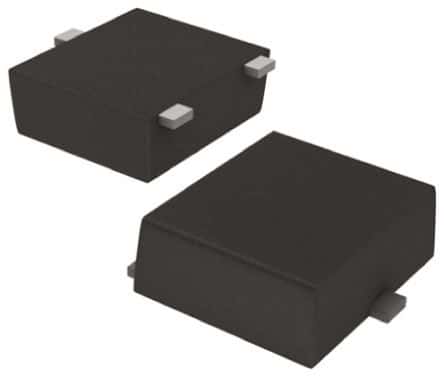

Product Images
