Technical Specifications
Toshiba SSM3K324R,LF technical specifications.
General
| Package/Case | SOT-23-3 |
| Continuous Drain Current (ID) | 4A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 109mR |
| Drain to Source Voltage (Vdss) | 30V |
| Gate to Source Voltage (Vgs) | 12V |
| Input Capacitance | 190pF |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Rds On Max | 55mR |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba SSM3K324R,LF Datasheet
Download the complete datasheet for Toshiba SSM3K324R,LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

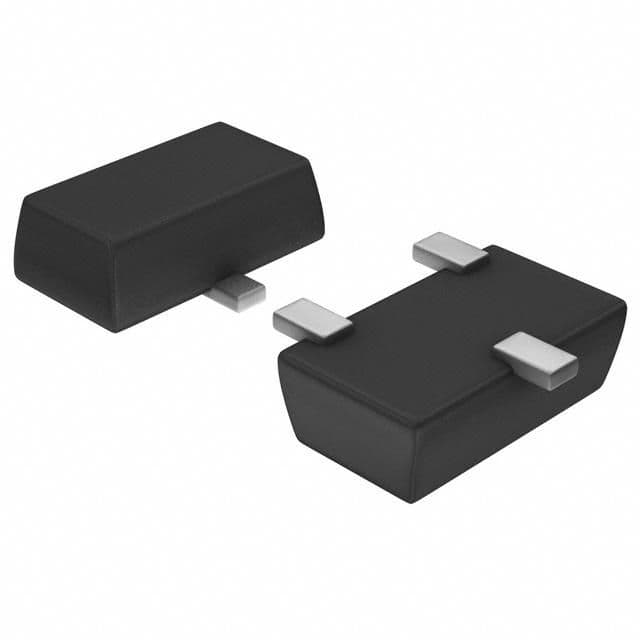

Product Images
