Toshiba
TC74HC00AP
IC HC/UH SERIES, QUAD 2-INPUT NAND GATE, PDIP14, 0.300 INCH, 2.54 MM PITCH, LEAD FREE, PLASTIC, DIP-14, Gate
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Toshiba TC74HC00AP technical specifications.
General
Package/Case
DIP
High Level Output Current
5.2mA
Lead Free
Contains Lead
Logic Function
NAND GATE
Low Level Output Current
5.2mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Through Hole
Number of Circuits
4
Number of Elements
4
Number of Gates
4
Number of Inputs
2
Number of Outputs
1
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
13ns
Quiescent Current
1uA
RoHS Compliant
Yes
Series
74HC
Technology
CMOS
Turn-On Delay Time
95ns
Compliance
RoHS
Compliant
Datasheet
Toshiba TC74HC00AP Datasheet
Download the complete datasheet for Toshiba TC74HC00AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

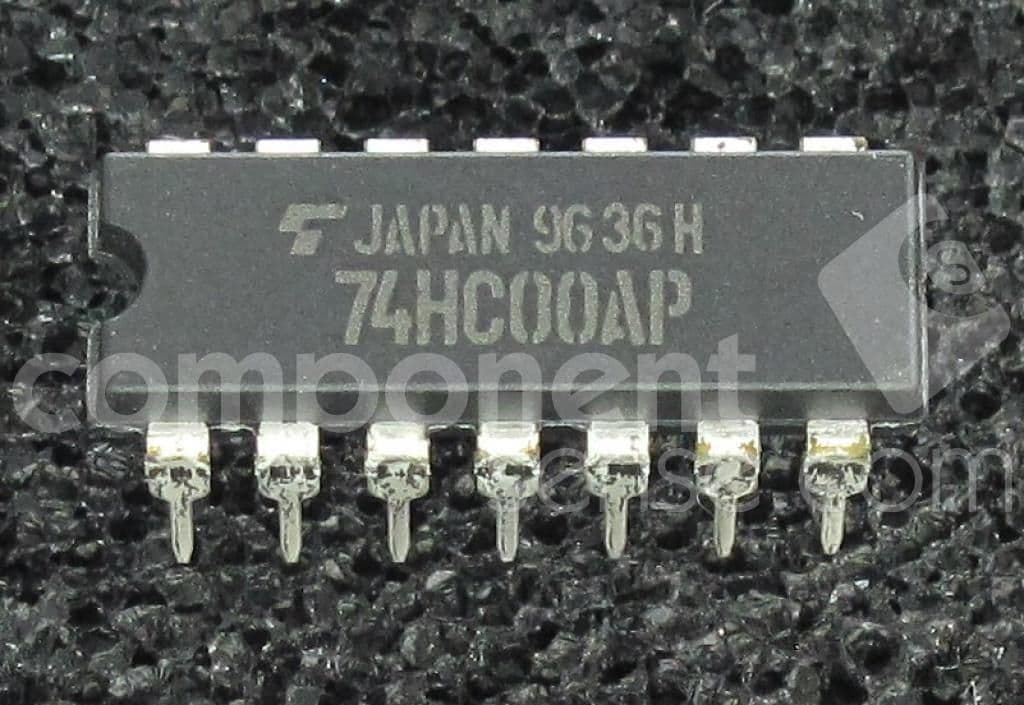

Product Images
