Technical Specifications
Toshiba TC74HC595AF technical specifications.
General
| Package/Case | SOP |
| Logic Function | Shift Register |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Number of Circuits | 8 |
| Number of Input Lines | 1 |
| Number of Output Lines | 9 |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 32ns |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TC74HC595AF Datasheet
Download the complete datasheet for Toshiba TC74HC595AF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

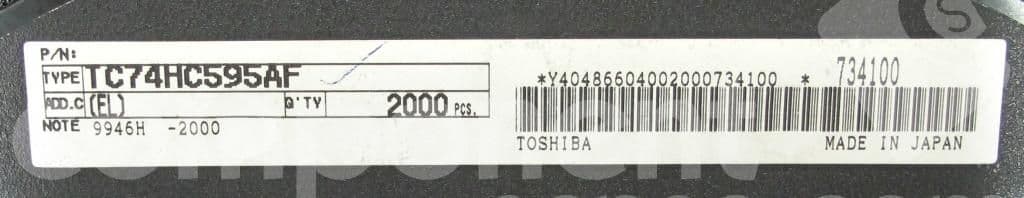

Product Images
