Technical Specifications
Toshiba TC74HC595AF(EL,F) technical specifications.
General
Package/Case
SOP
Lead Free
Lead Free
Logic Function
Shift Register
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Elements
1
Output Type
3-STATE
Packaging
Tape and Reel
Propagation Delay
240ns
Radiation Hardening
No
RoHS Compliant
Yes
Technology
CMOS
Compliance
RoHS
Compliant
Datasheet
Toshiba TC74HC595AF(EL,F) Datasheet
Download the complete datasheet for Toshiba TC74HC595AF(EL,F) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

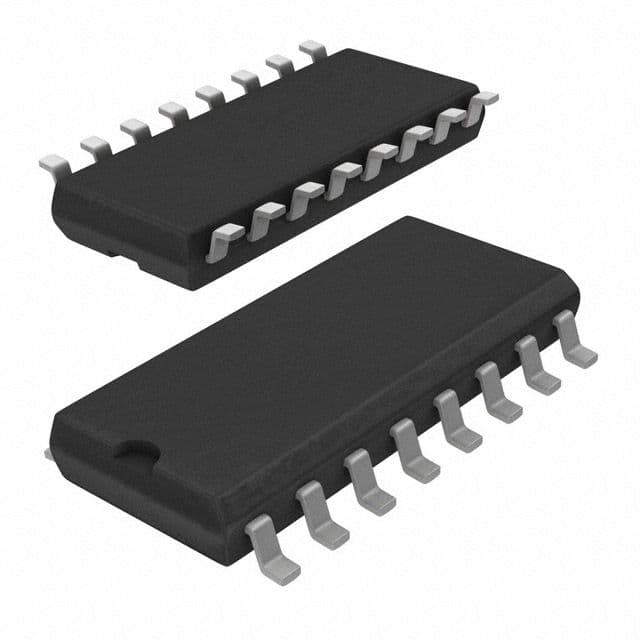

Product Images
