Dual 2-input OR gate IC, surface mountable in an 8-pin SOP package. Features a CMOS technology with a minimum supply voltage of 2V and a maximum of 6V. Offers a high level output current of 5.2mA and a low level output current of 5.2mA. Operates within a temperature range of -40°C to 85°C, with a propagation delay of 13ns.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Toshiba TC7W32F(TE12L) technical specifications.
General
Package/Case
SOP
High Level Output Current
5.2mA
Lead Free
Contains Lead
Logic Function
OR GATE
Low Level Output Current
5.2mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Circuits
2
Number of Elements
2
Number of Gates
2
Number of Inputs
2
Number of Outputs
1
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
13ns
Quiescent Current
1uA
Radiation Hardening
No
RoHS Compliant
No
Series
7W
Technology
CMOS
Turn-On Delay Time
95ns
Compliance
RoHS
Not CompliantNo
Datasheet
Toshiba TC7W32F(TE12L) Datasheet
Download the complete datasheet for Toshiba TC7W32F(TE12L) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

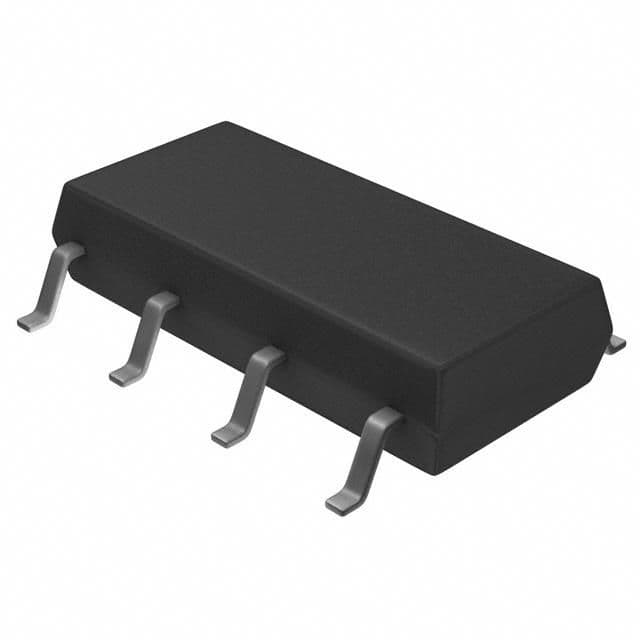

Product Images
