Solid State Relay (SSR) with DC input and AC/DC output, featuring a 400mA maximum output current and 60V maximum output voltage. This single-channel, SPST relay offers a 1.5kV isolation voltage and operates with a 50mA input current and 1.3V maximum input voltage. Packaged in a 4-pin SOP with gull wing termination for surface mounting, it boasts a 290mW maximum power dissipation and operates across a -40°C to 85°C temperature range.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Toshiba TLP172A(F) technical specifications.
General
Package/Case
SOP
Forward Current
7.5mA
Height
2.1mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
4.4mm
Load Current
400mA
Max Input Current
50mA
Max Input Voltage
1.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Voltage
60V
Max Power Dissipation
290mW
Mount
Surface Mount
Number of Channels
1
Number of Contacts
1
Output Current
400mA
Output Voltage
60V
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
Relay
Reverse Voltage (DC)
5V
RoHS Compliant
Yes
Series
TLP172A
Termination
Gull Wing
Throw Configuration
SPST
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Toshiba TLP172A(F) Datasheet
Download the complete datasheet for Toshiba TLP172A(F) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

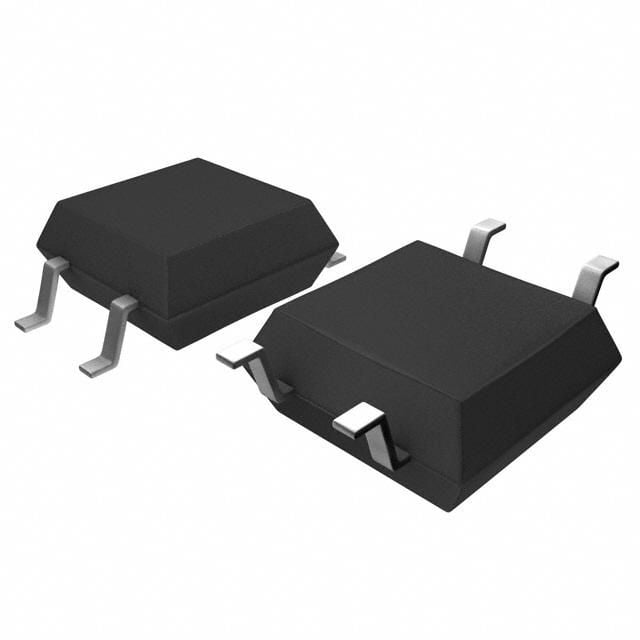

Product Images
